[1]

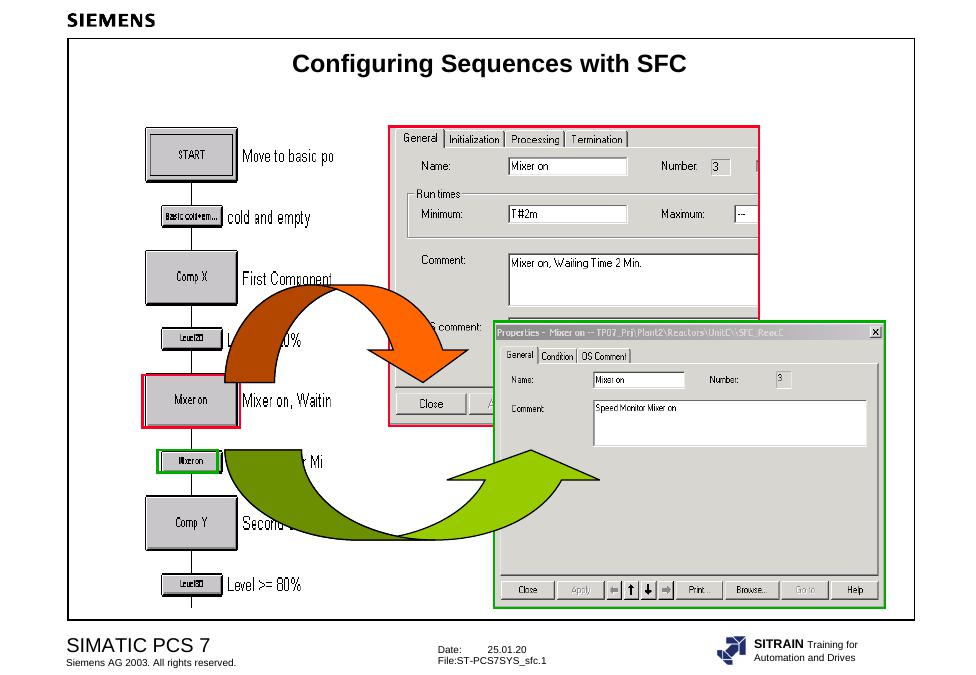

Date: 25.01.20File:ST-PCS7SYS_sfc.1SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesConfiguring Sequences with SFC
[2]
Date: 25.01.20File:ST-PCS7SYS_sfc.2SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesOverviewMenu barSTARTENDS1S2 S3S4T1T2T3T4S1...S4 StepsT1...T4 TransitionsStep symbols
[3]

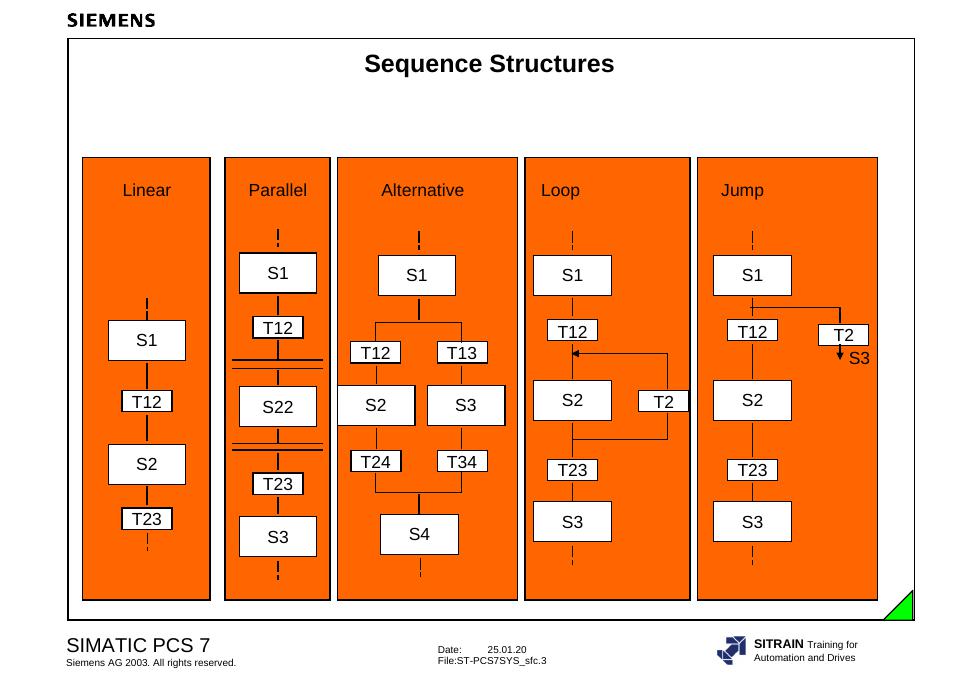

Date: 25.01.20File:ST-PCS7SYS_sfc.3SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesSequence StructuresS1T12S2T23LinearS212T23T12ParallelS2 S3T12 T13T24 T34AlternativeS2 T2T23LoopS4S3S3S1 S1T12S1S2T2T23JumpS3T12S1S3
[4]

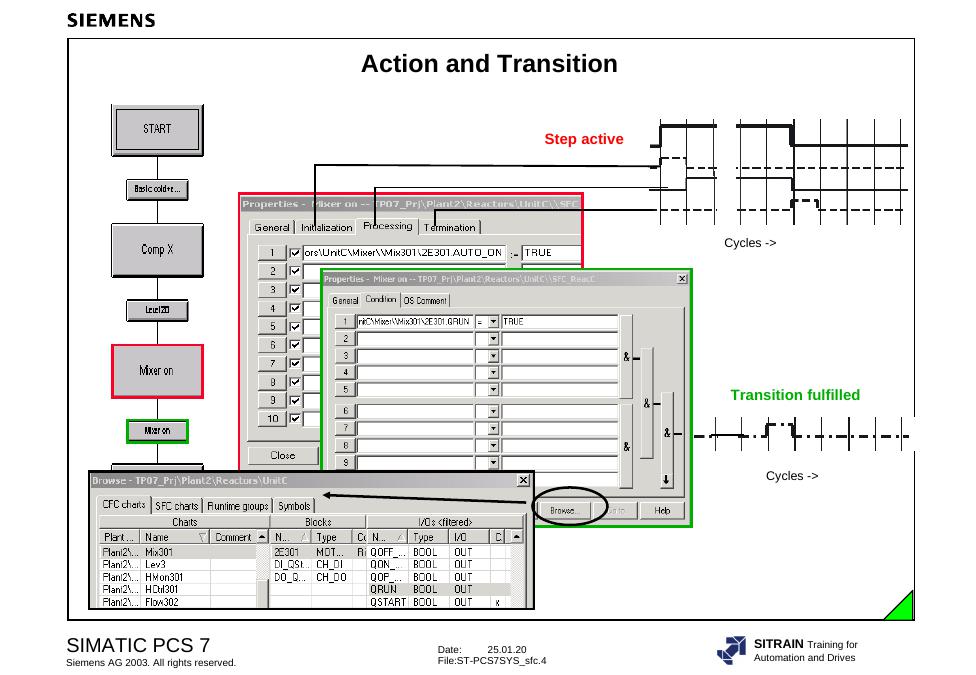

Date: 25.01.20File:ST-PCS7SYS_sfc.4SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesAction and TransitionStep active Transition fulfilledCycles ->Cycles ->
[5]

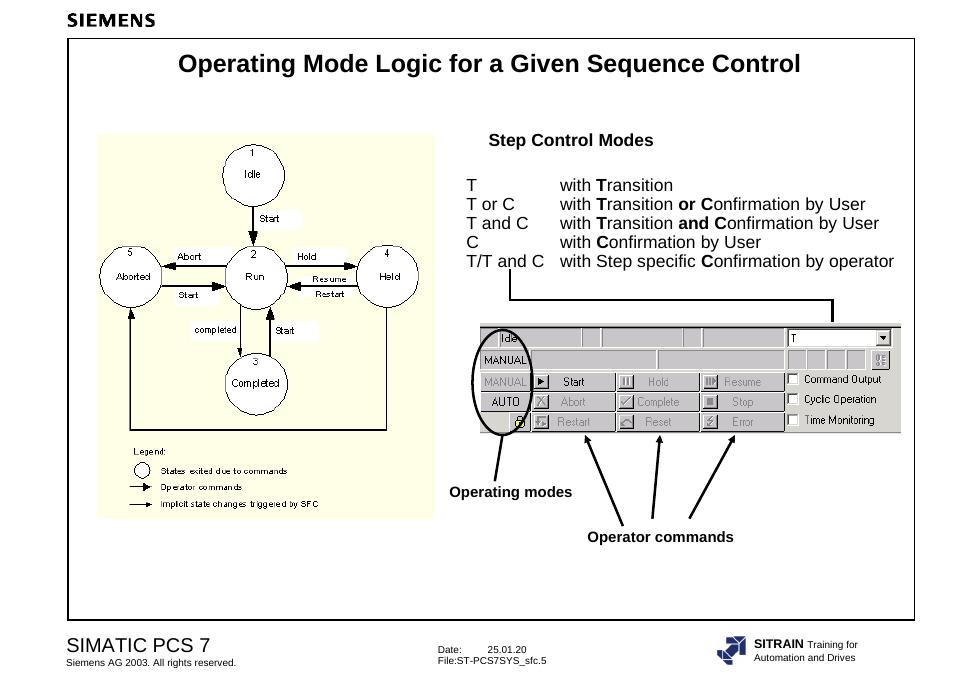

Date: 25.01.20File:ST-PCS7SYS_sfc.5SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesOperating Mode Logic for a Given Sequence ControlStep Control ModesT with TransitionT or C with Transition or Confirmation by UserT and C with Transition and Confirmation by UserC with Confirmation by User T/T and C with Step specific Confirmation by operatorOperating modesOperator commands
[6]

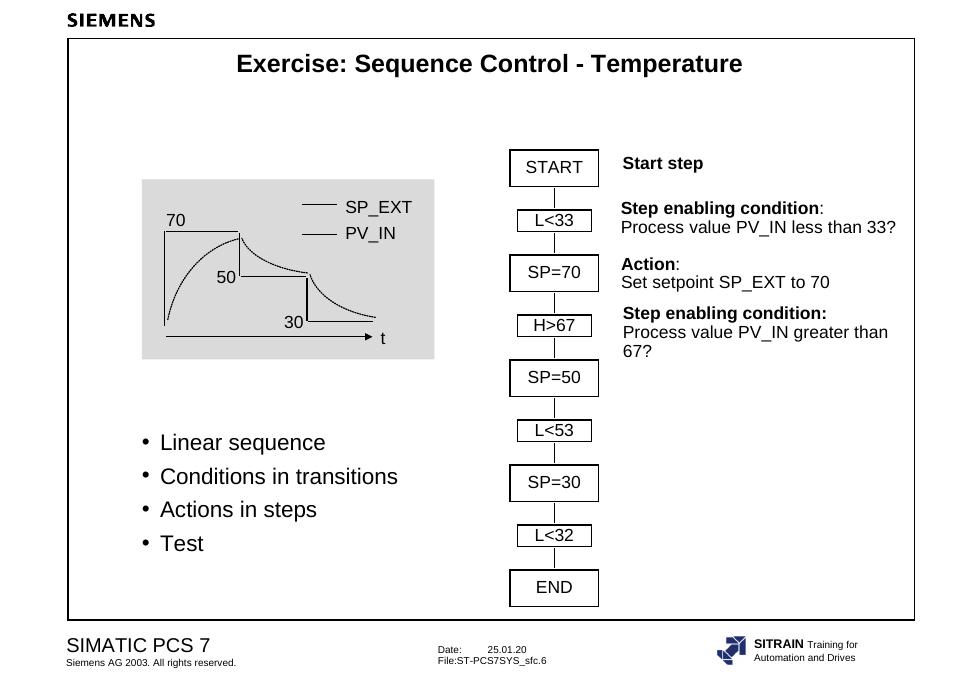

Date: 25.01.20File:ST-PCS7SYS_sfc.6SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesExercise: Sequence Control - TemperatureSTARTL<33SP=70H>67SP=50L<53SP=30L<32END705030SP_EXTPV_INtStep enabling condition:Process value PV_IN less than 33?Step enabling condition:Process value PV_IN greater than67?Action:Set setpoint SP_EXT to 70 • Linear sequence• Conditions in transitions• Actions in steps• TestStart step
[7]
Date: 25.01.20File:ST-PCS7SYS_sfc.7SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and Drives
[8]

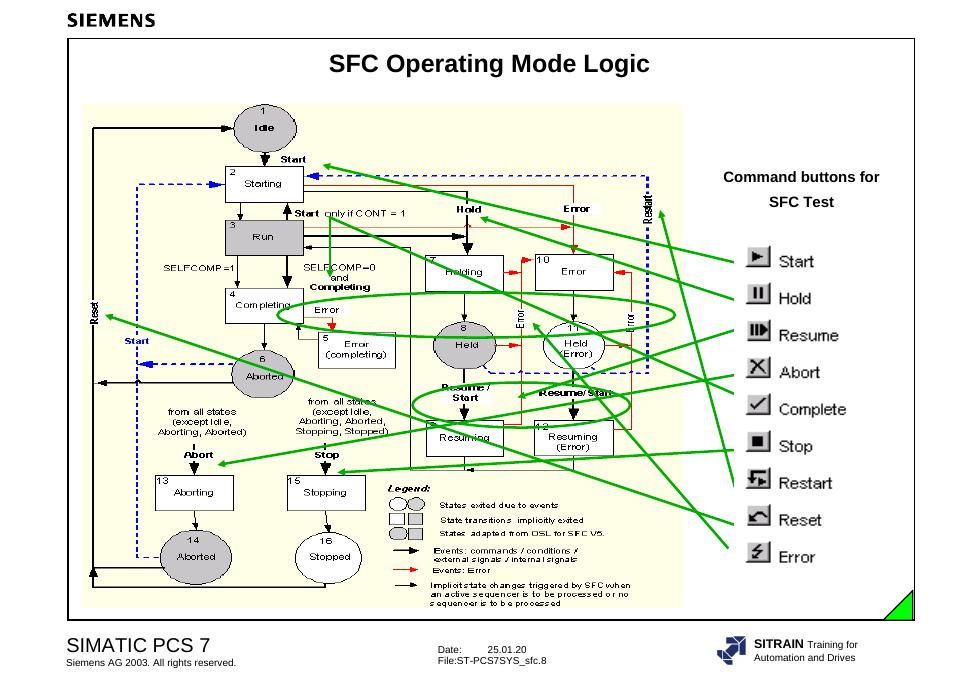

Date: 25.01.20File:ST-PCS7SYS_sfc.8SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesSFC Operating Mode LogicCommand buttons for SFC Test
[9]

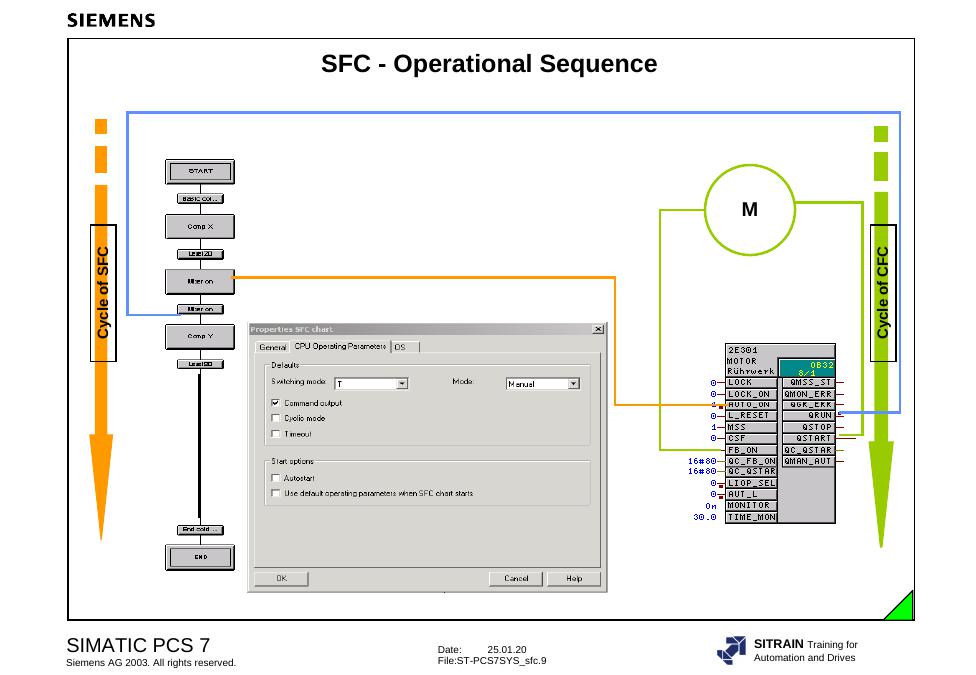

Date: 25.01.20File:ST-PCS7SYS_sfc.9SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesSFC - Operational SequenceMCycle of SFCCycle of CFC
[10]

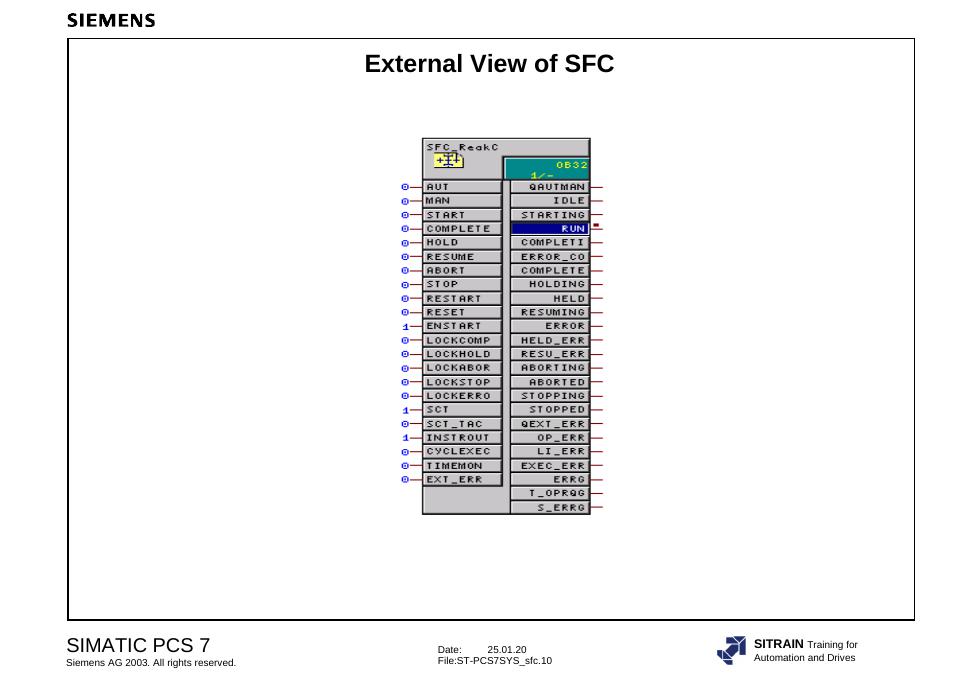

Date: 25.01.20File:ST-PCS7SYS_sfc.10SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesExternal View of SFC
[11]

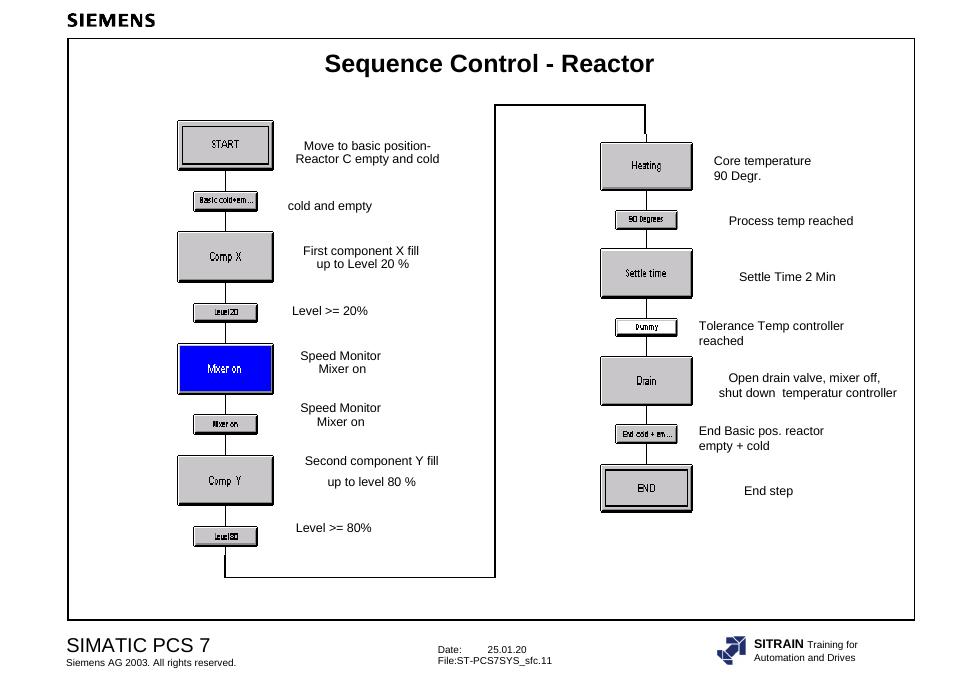

Date: 25.01.20File:ST-PCS7SYS_sfc.11SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesSequence Control - ReactorMove to basic position- Reactor C empty and coldFirst component X fill up to Level 20 %Speed MonitorMixer onSpeed Monitor Mixer onLevel >= 80%Core temperature 90 Degr.Process temp reachedSettle Time 2 MinOpen drain valve, mixer off, shut down temperatur controller Second component Y fillup to level 80 %End stepLevel >= 20%cold and emptyTolerance Temp controller reachedEnd Basic pos. reactor empty + cold
[12]
Date: 25.01.20File:ST-PCS7SYS_sfc.12SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesNotes
[13]

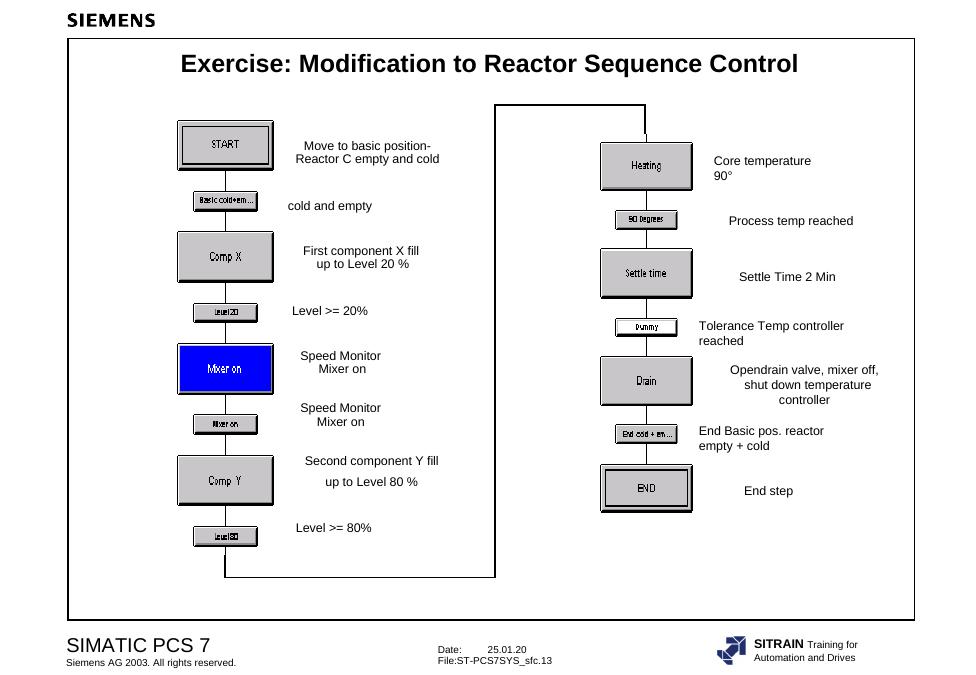

Date: 25.01.20File:ST-PCS7SYS_sfc.13SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesExercise: Modification to Reactor Sequence ControlMove to basic position- Reactor C empty and coldFirst component X fill up to Level 20 %Speed MonitorMixer onSpeed Monitor Mixer onLevel >= 80%Core temperature 90°Process temp reachedSettle Time 2 MinOpendrain valve, mixer off, shut down temperature controller Second component Y fillup to Level 80 %End stepLevel >= 20%cold and emptyTolerance Temp controller reachedEnd Basic pos. reactor empty + cold
[14]

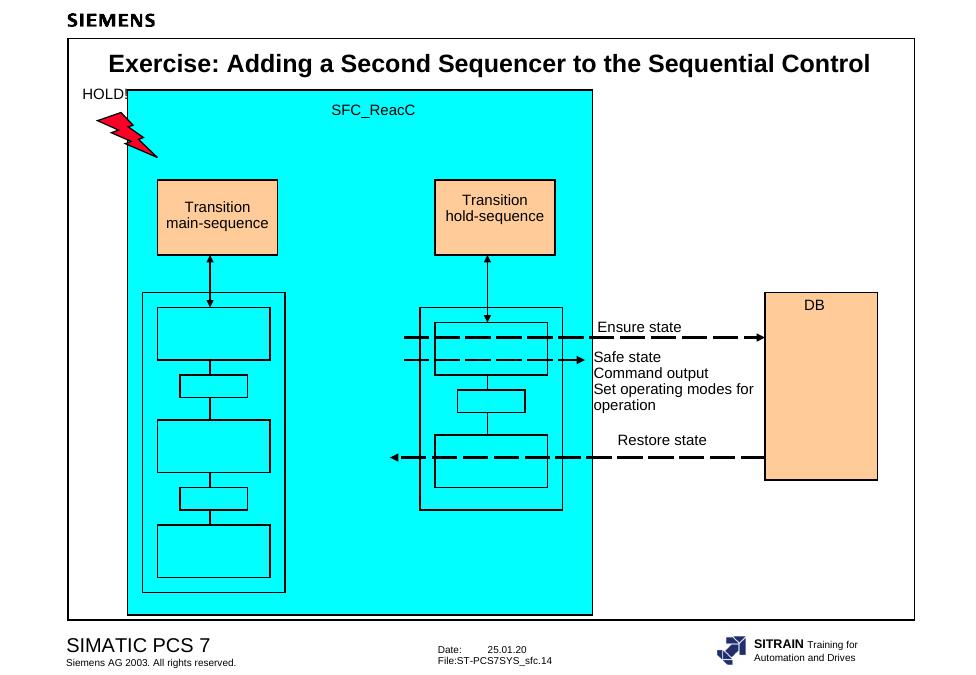

Date: 25.01.20File:ST-PCS7SYS_sfc.14SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesExercise: Adding a Second Sequencer to the Sequential ControlTransitionmain-sequenceTransitionhold-sequenceDBSFC_ReacCEnsure stateSafe stateCommand outputSet operating modes foroperationRestore stateHOLD!
[15]

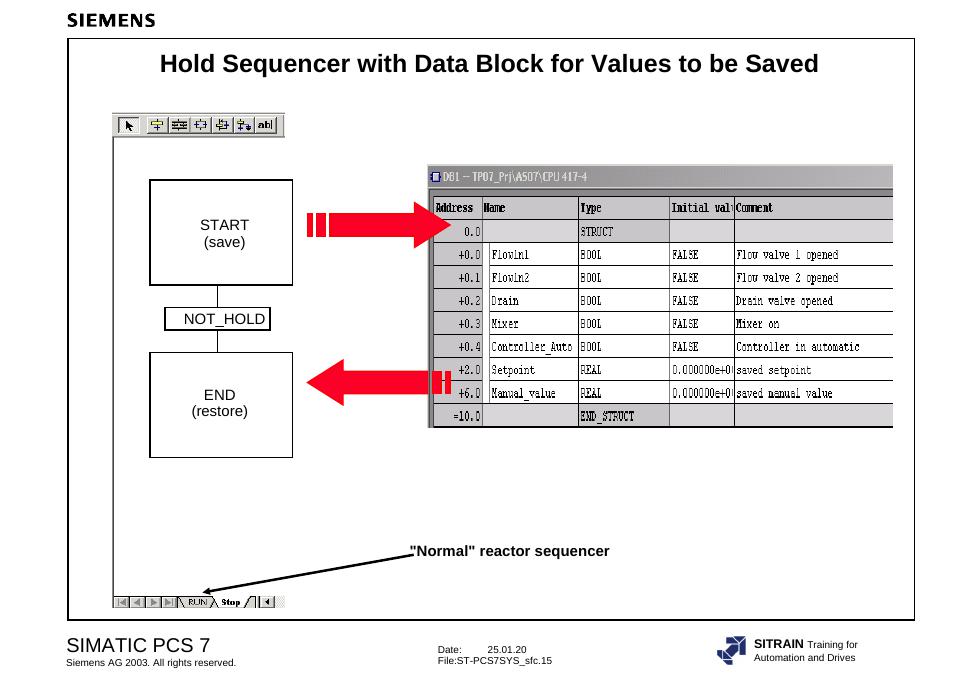

Date: 25.01.20File:ST-PCS7SYS_sfc.15SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesHold Sequencer with Data Block for Values to be Saved\Normal\ reactor sequencerEND(restore)NOT_HOLDSTART(save)
[16]

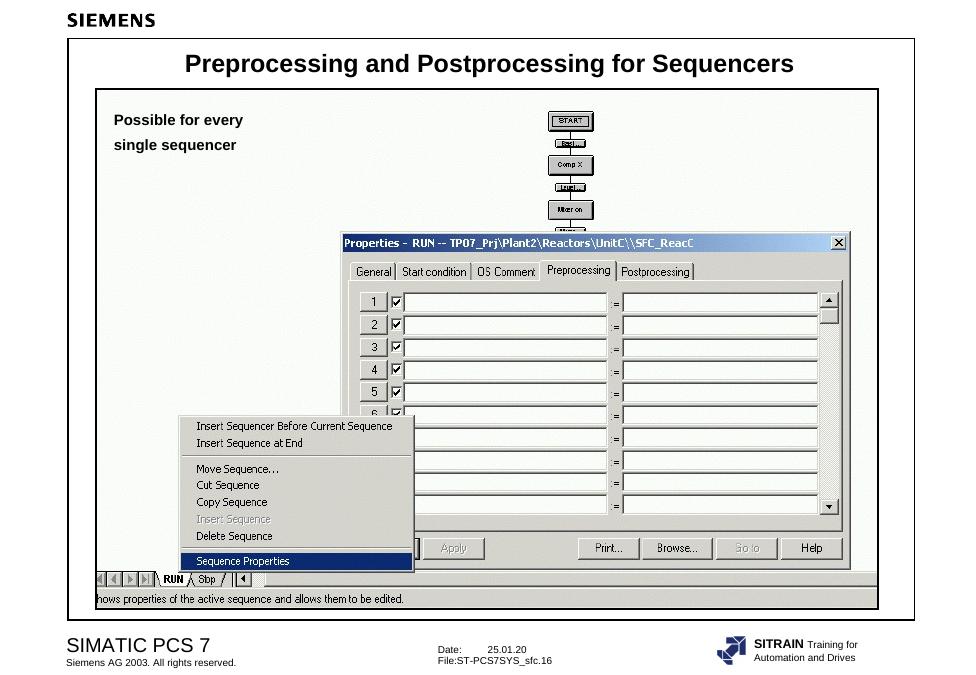

Date: 25.01.20File:ST-PCS7SYS_sfc.16SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesPreprocessing and Postprocessing for SequencersPossible for every single sequencer
[17]

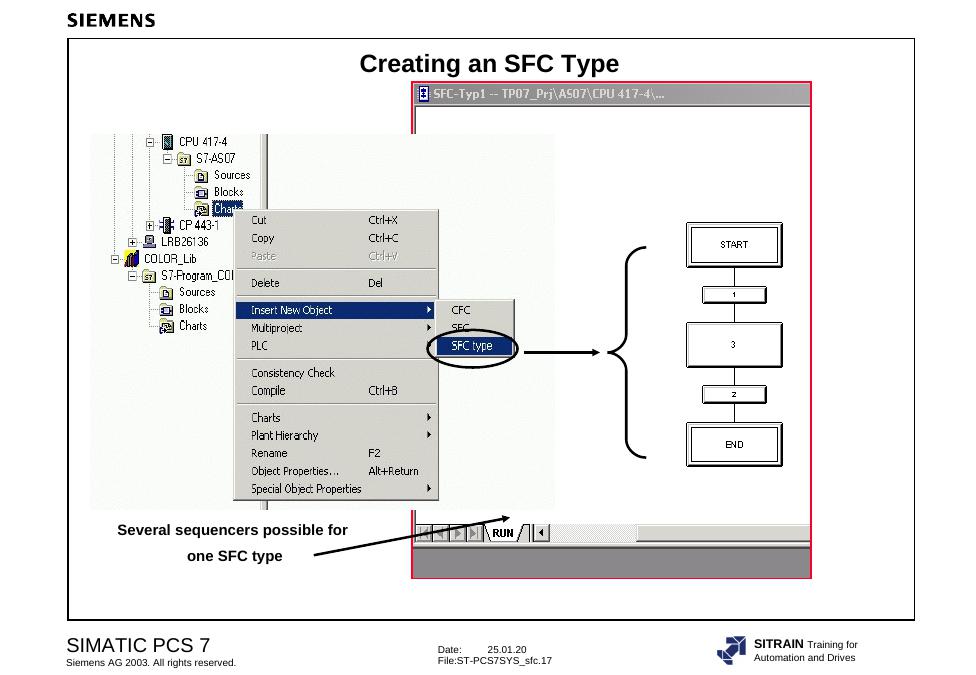

Date: 25.01.20File:ST-PCS7SYS_sfc.17SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesCreating an SFC TypeSeveral sequencers possible for one SFC type
[18]

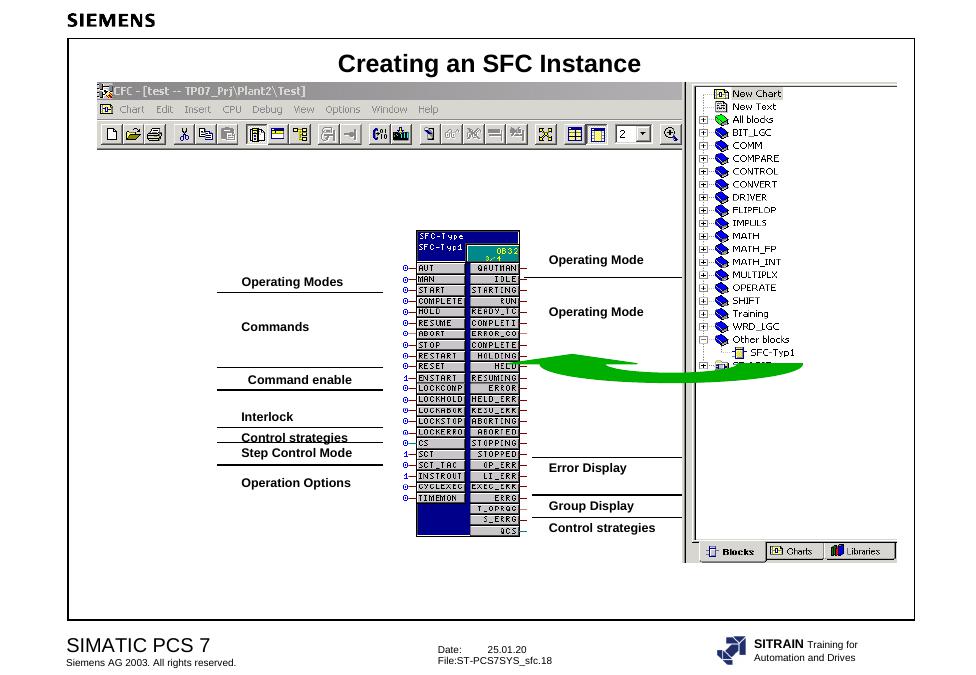

Date: 25.01.20File:ST-PCS7SYS_sfc.18SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesCreating an SFC InstanceOperating ModesCommandsCommand enableInterlockControl strategiesStep Control ModeOperation OptionsOperating ModeOperating ModeGroup DisplayError DisplayControl strategies
[19]

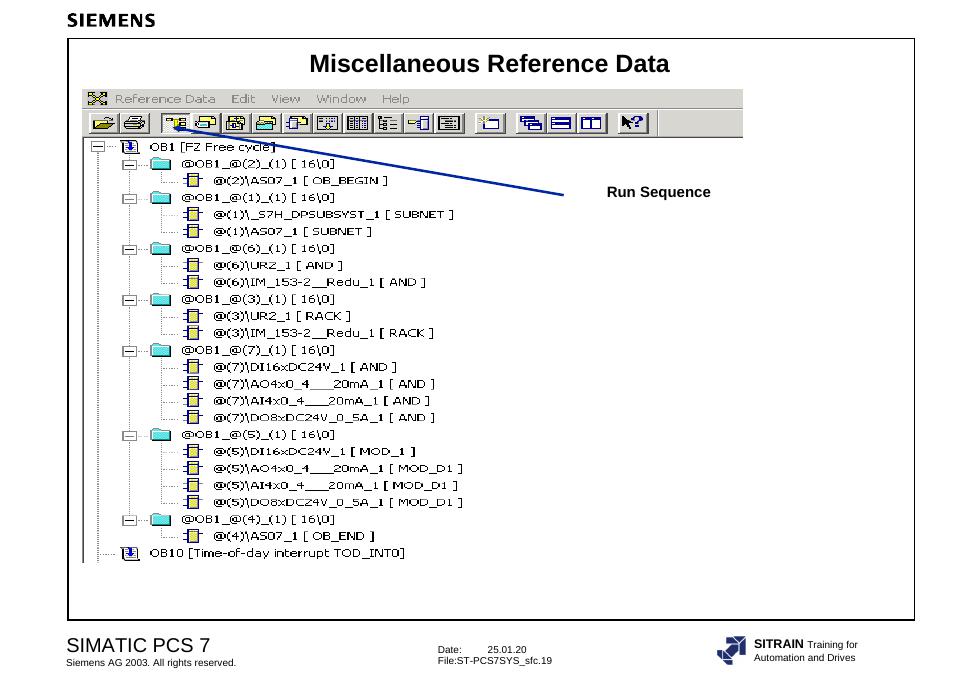

Date: 25.01.20File:ST-PCS7SYS_sfc.19SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesMiscellaneous Reference DataRun Sequence
[20]
Date: 25.01.20File:ST-PCS7SYS_sfc.20SIMATIC PCS 7Siemens AG 2003. All rights reserved.SITRAIN Training for Automation and DrivesMiscellaneous Reference DataRun Sequence
